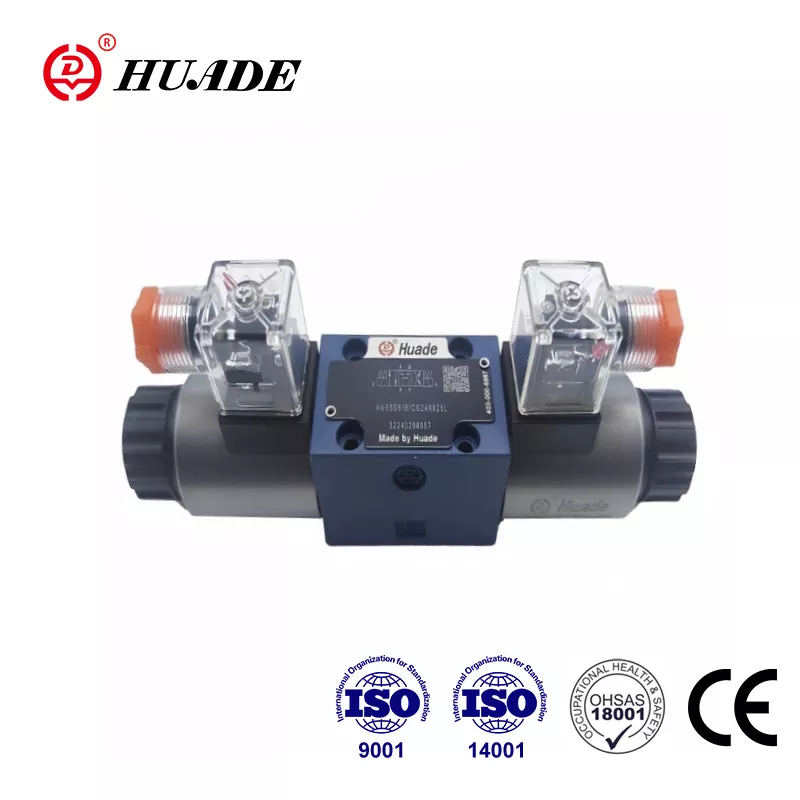

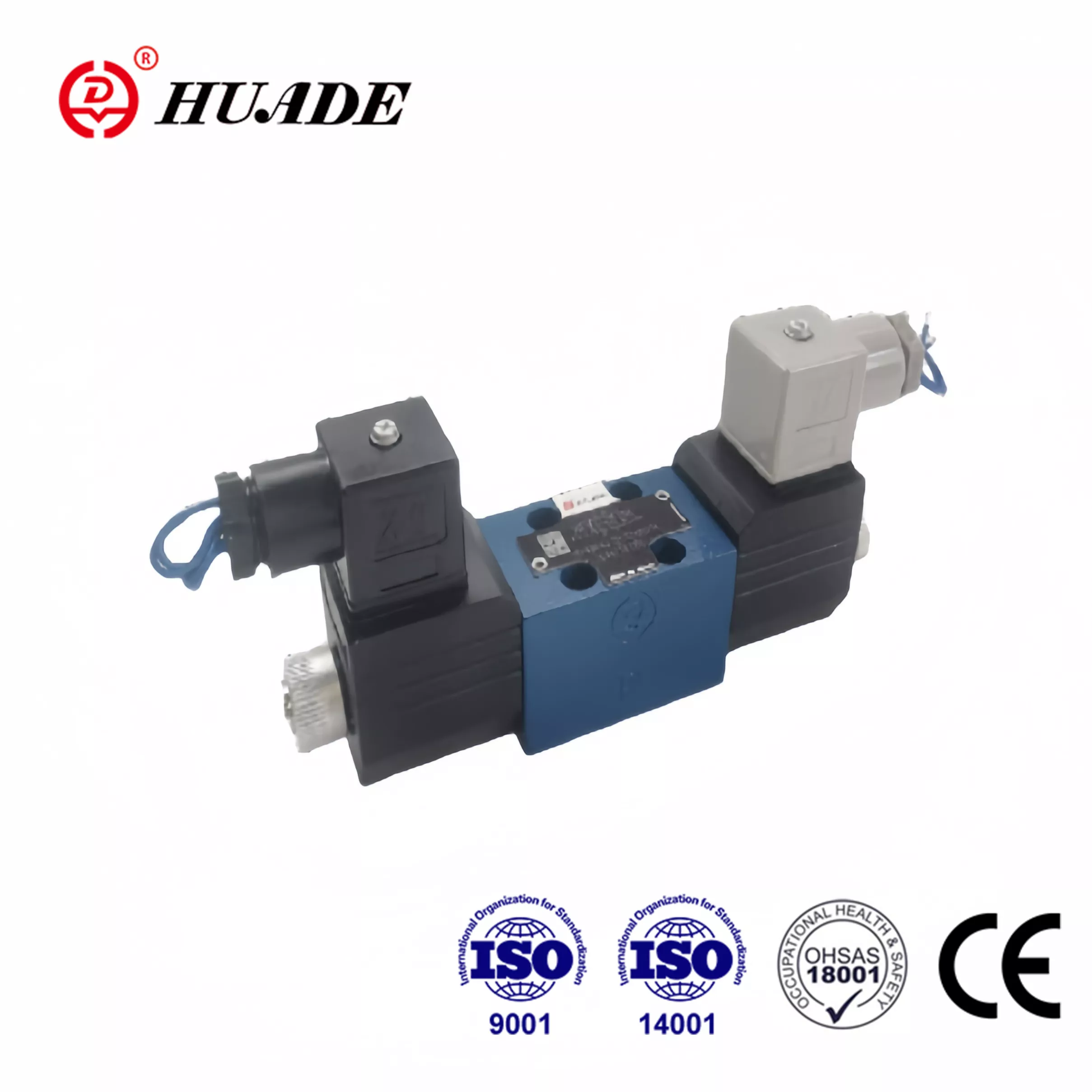

Усмерени контролни вентил имамо 4 за рекротх

• Карактеристике производа: Соленоид-оперативни калемични вентил, рекротх-компатибилан дизајн, ЦЕ сертификовани, влажни ПИН соленоиди
• Спецификације: Максималан притисак 21МПА, проток до 25л / мин, ИСО 4401 Узорак порта
• Апликације: Инжењеријска машина, металургија, машински алати, заштита животне средине, бродоградња, ваздухопловство

Strategic cooperation between the Chinese and German governments from 1979, Huade has incorporated cutting-edge technology from Rexroth. Huade® WE 4 directional spool valve is an affordable alternative to the same model offered by Rexroth. Huade puts great stress on the quality. Huade has a strict testing system to ensure that every directional valve has superior performance. The solenoid valve series has passed CE certification. Huade® hydraulic valves are widely used in engineering and construction machinery, metallurgy, machine tools, environmental protection, shipbuilding, aerospace, rail transit, petroleum and petrochemical, military industry and other fields. It is a reliable national brand in China.

Product parameter of the Directional Control Valve WE 4 for Rexroth

Hydraulic technical data

Max.operating pressure-Ports A,B,P (㎫)

up to 21.0

Port T(㎫)

10.0 .With symbols A or B port T must be used as leakage port
when the operating pressure is above the permissible tank pressure

Max.flow (L/min)

up to 25

Pressure fluid

Mineral oil or phosphate ester

Viscosity range    (mm2/s)

2.8 to 500

Pressure fluid temperature range (℃)

-30~+80

Degree of contamination (㎛)

Maximum permissible degree of contamination of the hydraulic fluid to NAS 1638 class 9. We therefore recommend a filter with a minimum retention rate of β≥ 75

Weight (kg)

Valve with 1 solenoid 0.9
Valve with 2 solenoids 1.3

Electrical technical data

Available voltages (V)

12. 24.220.110R 220R

Power consumption (W)

22

Duty

continuous

Switching time

ON (ms)

20 to 30

OFF (ms)

10 to 20

Max. ambient temperature(℃)

+50

Max. coil temperature (℃)

+150

Protection to DIN 40 050

IP65

Switching frequency (cycles/h)

15000

With electric connection the protective conductor (PE ) must be connected according to the relevant regulations


Product Feature And Application of Directional Control Valve WE 4 for Rexroth

Features:

▶ Directional valves of type WE 4 are solenoid operated directional spool valves

▶ Wet pin solenoids of direct or alternating current

▶ Porting pattern to ISO 4401 and CETOP - RP 121H


Application:

Directional valves of type WE 4 are solenoid operated directional spool valves. They control the start, stop and direction of a fluid.

Functions,Section and Symbols of the Directional Control Valve WE 4 for Rexroth

These directional valves basically consist of the housing(1), one or two solenoids (2), the control spool(3), and one or two return springs(4).

The control spool (3) is held by the return spring (4) in the central or in the initial position (except for detented spools). The control spool(3) is actuated via wet pin solenoids (2). In the energized condition. The force of the solenoid(2) acts via the plunger (5) on the control spool (3) and shifts the same from its rest position to the desired end position. Thus, the required flow pattern from P to A and B to Tor P to B and A to T is selected. When the solenoid(2) is de-energized, the control spool (3) is returned to its neutral

This version is a directional valve with 2 switching positions and position by the return spring (4). A covered manual override is provided so that the control spool (3)can be operated without

energizing the solenoid.


Cutaway view of 4WE 4-10B


Cartridge throttle
